Multi-circuit rotary unit

Diamond in a nutshell

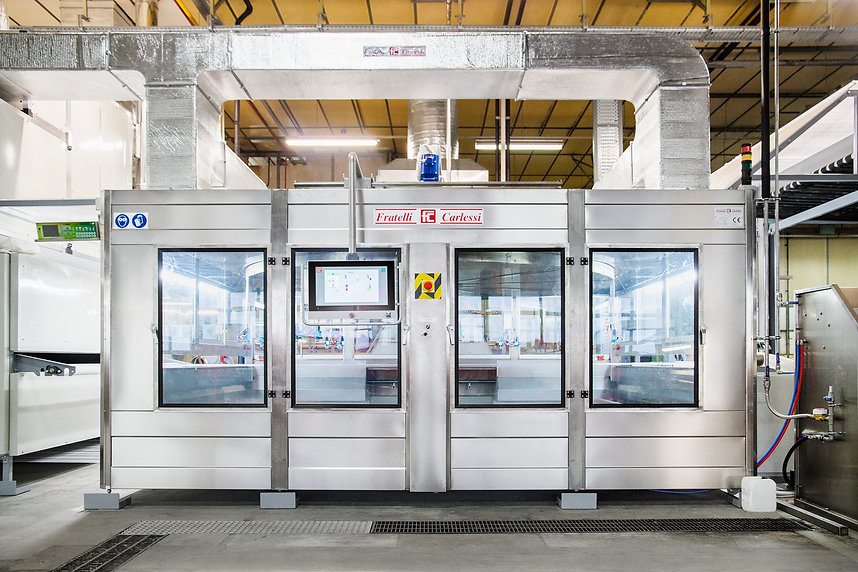

Diamond spray booth, for amazing results

The new generation Diamond booth is the result of over 70 years of experience in spray booth construction and is made entirely of stainless steel.

The booth structure is optimised to distribute internal flows correctly, the large diameter turntable and the internal air circulation all contribute to achieving excellent spraying of the leather. The colour distribution circuits operate in automatic washing mode, allowing the operator to run a wash cycle and top up with new colour pigment.



Available in standard processing widths of from 1800 to 3400 mm.

A rotary unit that makes a difference

The rotary unit has independent colour supply circuits and is suitable for the different types of spray guns: standard, HVLP, airless and airmix.


Wide conveyor-carousel ratio

The wide-ratio between the width of the conveyor and the diameter of the carousel (41% larger than the processing width), allows the application of the finishing layer in the most uniform manner possible for the processing of all kinds of hides and leather goods.

Special features

Stainless steel structure for even longer service life and increased reliability over time;

Large access doors for ease of access to the inside of the booth, making cleaning and maintenance much easier and faster;

Differentiated pressure air circuits for spray gun control and adjusting of the spray polymerization;

Ready to enable the automatic self-cleaning circuit and rapid colour change systems;

Continuous speed adjustment of the rotary unit, to synchronise it with the conveyor speed;

Possibility to install 8/12/14/16 spray guns, according to the customer specifications;

Bottom booth tank available in different versions: dry, still water, recirculating water films;

High-efficiency spray fume extractor independent of the spray booth and made entirely of stainless steel. This makes it possible to combine maximum processing efficiency with low operating costs and easy maintenance;

Latest generation economizer that combines increased functionality with superior performance and guarantees technical support for years to come.

Customization options

Automatic colour circuit washing and loading system: with the possibility to wash the colour circuit and load a new colour pigment while using another circuit; this drastically minimises colour change times;

Booth heat recovery;

Touch screen for setting the operating parameters of booths, spray guns, economizer and abatement unit using software with a user-friendly graphic interface (Industry 4.0);

Spray gun height adjustment;

Linking conveyors;

Wire cleaning system available in two versions: with dry wire scraper or washing options.

Copia di Fratelli Carlessi_Spray Lines_3 (1)_edited.jpg

Industry 4.0

A simple and user-friendly operator interface is the result of the programming and graphic design work carried out entirely by our engineers and designers.



A software conceived alongside the machine, which can manage all the information received from the spray booth and the connected drying tunnels and can be programmed in seconds. Ready for interconnection with external software such as the M.O.Re and management software, it is able to save, also locally, historical production data and provide clear and rapid consultation to technicians and supervisors directly from the panel.
